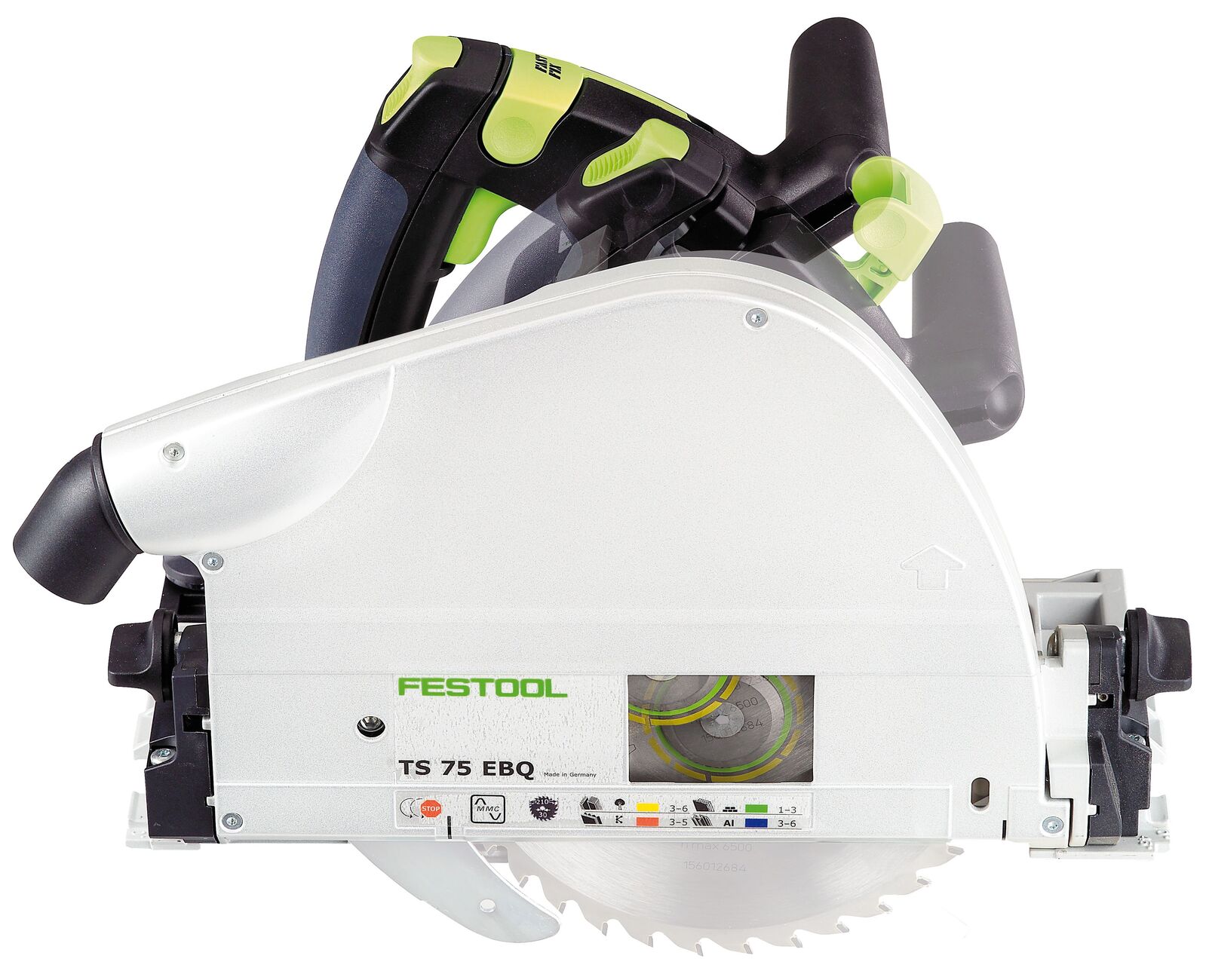

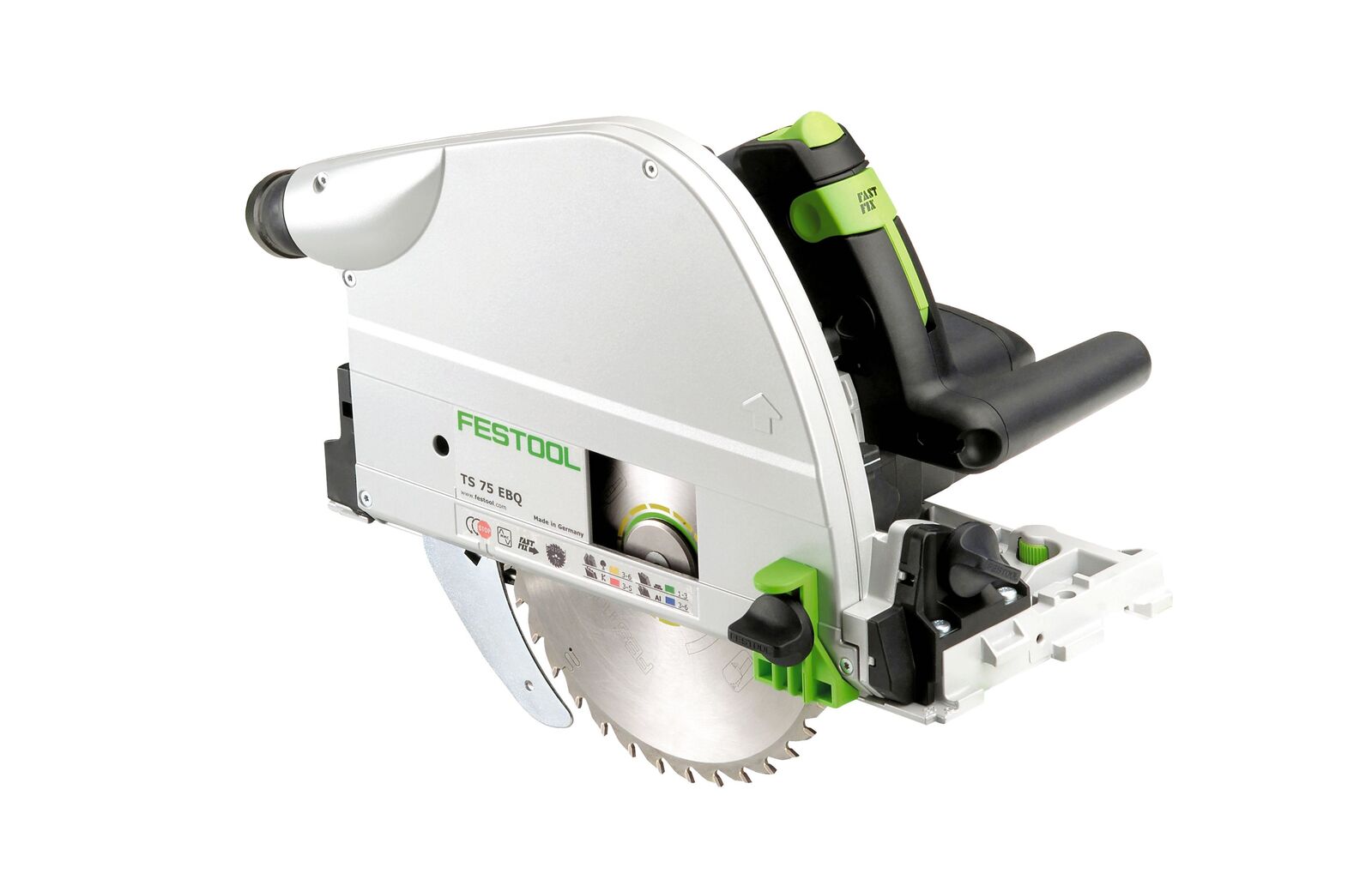

Festool TS 75 EBQ Plus FS Plunge Cut Saw 210mm (561512)

Festool TS 75 Plunge Cut Circular Saws

For a greater cutting depth up to 75 mm. Follows only one line. Accurate to the millimetre and without splinters. With the necessary force for each material – lightweight and easy to handle. And the motor with three bearings including MMC electronics for an exceptional service life. The TS 75 combines considerable power and a lightweight in a compact device. Together with the guide rail, the TS 75 ensures flexible, fast and precise work.

Features:

• 75 mm cutting depth for even more application possibilities
• FastFix: quick and easy saw blade changing and adapting to the working material
• Safe and convenient – with sliding clutch and KickbackStop
• Spring-loaded spacer wedge for unhindered plunge cuts
• Tool-less play setting on the guide rail
• Quick-acting brake system for safe, convenient sawing
• Attachable splinterguard for high-quality working results

Main Uses:

• With one cut through thick and thin: With a cutting depth of 75 mm and a power of 1600 watts, even thick workpieces can be sawed with a single cut. The time-consuming task of machining two sides is a thing of the past. This minimises reworking and saves the laborious process of rotating the workpiece.
• Safe working: The KickbackStop prevents kickbacks when inserting the saw. Always to hand in the practical holder, it guarantees safe work.
• FastFix saw blade changing system: Work adapted to the material. The FastFix spindle stop makes it extremely easy to change the saw blade. This way, you are always working with the right saw blade and sawing at a speed adapted to the material.
• Extended service life: The triple bearing of the motor improves the running smoothness and extends the service life.
• Exact depth setting: You can set the cutting depth accurate to the millimetre using the latching depth stop.
• MMC electronics: Perfect adaptation to the working material, controlled speed and temperature monitoring. The quick-acting brake improves safety by stopping the saw blade in seconds.
• Safe and clean insertion: The spacer wedge is spring loaded and slides back into the housing automatically when placed on the workpiece. Once the machine is inserted, the spacer wedge moves into the saw groove and prevents the saw blade from getting jammed. This means that the spacer wedge is always on the saw, ensuring safety at all times.
• Additional safety: If the saw blade gets jammed, the sliding clutch prevents the saw from jolting back.
• Dust-free work: The extractor connector, which can be rotated by 360°, makes it exceptionally easy to adjust the dust extractor to suit the working position.

Technical Data

• Tool Weight (kg): 6.2 kg
• No Load Speed (rpm): 1,350 rpm - 3,550 rpm
• Saw Blade Diameter (mm): 210 mm
• Cutting Depth (mm): 0 mm - 75 mm
• Cutting Depth at 45° (mm): 55 mm
• Dust Extraction Connection Diameter (mm): 27 mm / 36 mm
• Bevel Angle Range (°): 0° to 47°
• Power Lead Type: Plug-it Lead
• Power Source: Corded
• Power Consumption (W or kW): 1,600 W
• Motor Type: Brushed

What's Included

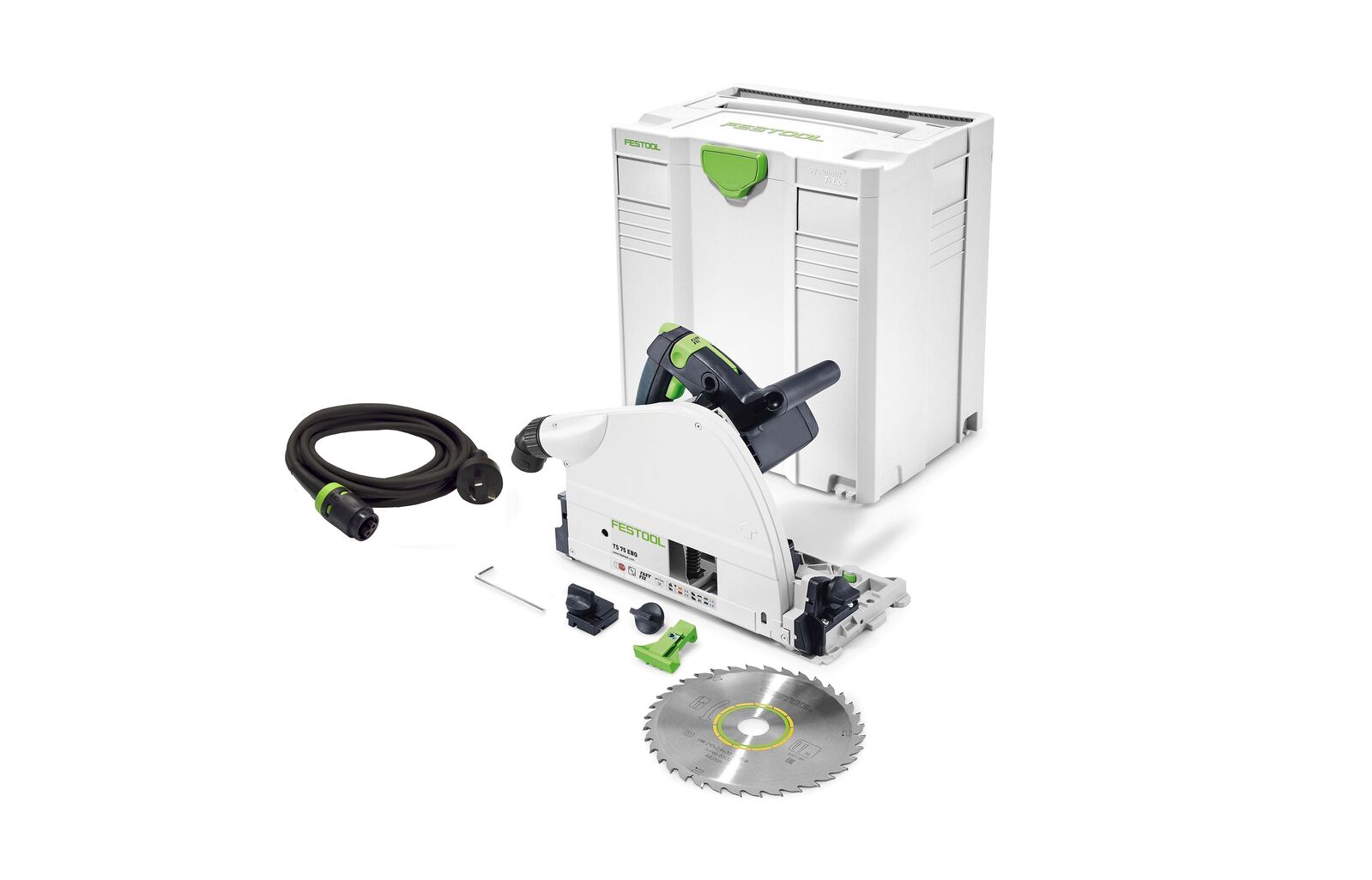

TS 75 210mm Plunge Cut Circular Saw in Systainer (576113)

• TS 75 Circular Saw
• Universal Saw Blade HW W36
• Splinterguard
• Kickback Stop
• Plug-it Lead
• SYS 5 T-LOC Systainer
• Tool Manual

TS 75 210mm Plunge Cut Circular Saw in Systainer with 1400mm Rail (576115)

• TS 75 210mm Plunge Cut Circular Saw
• Universal Saw Blade HW W36
• Splinterguard
• Kickback Stop
• FS 1400 mm Guide Rail
• Plug-it Lead
• SYS 5 T-LOC Systainer

Please Note: Current ETA for stock is September 2022.
