Milescraft JointMaster Dowelling Jig Adjustable Self-Centering Metric Set
Looking for a compact dowelling jig kit that delivers big results? This dowelling kit includes everything you need to go dowelling today. Perfect for the enthusiast and pro woodworker alike.
The JointMaster Dowelling Jig Kit
The JointMaster™ comes with three drill blocks and can create joints using the most common dowel pin sizes – 6mm, 8mm and 10mm. Each hardened steel drill block is adjustable to accept and align centred dowel holes on boards from 12.5mm up to 75mm. Built-in scales help to align and centre your dowels. This kit also includes a set of drill bits with depth stops AND a bucket of dowels. Everything you need to go dowelling!
Whats in the kit

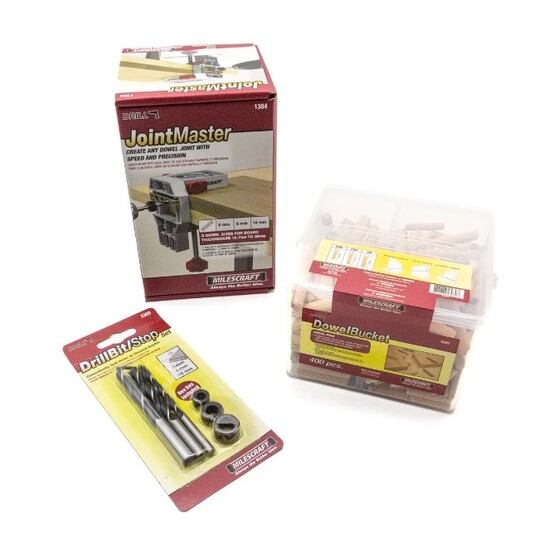

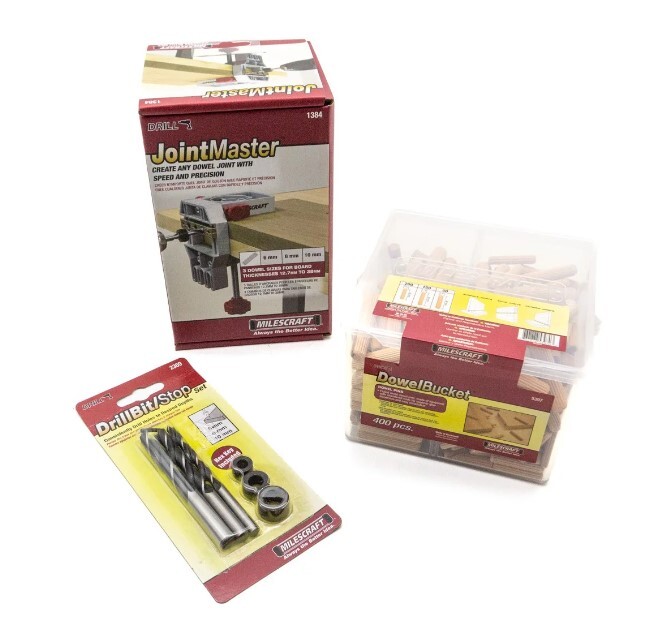

This comprehensive dowelling kit includes:
- 1 x JointMaster Metric Dowelling Jig - MC-1384
- 1 x set of drill bits with depth stops – MC-2369 (6mm, 8mm & 10mm)
- 1 x bucket of dowels – MC-5397 (6mm x 200, 8mm x 150, 10mm x 50 dowels)
Use the product code to view the individual products on the Timbecon website.
Features & benefits
- Includes everything you need to get dowelling today
- A sturdy all-metal jig body is configurable for edge, corner, and surface joints
- Durable all-aluminium construction means the jig won’t flex or bend
- Self-clamping jig securely holds the workpiece in place
- Hardened steel bushings provide long-lasting, accurate dowel hole drilling
- Drill guide bushing block sizes 6mm, 8mm & 10mm with drill bits and depth stops to suit
- Dual Position Clamping Block with Spindle
- Allows for horizontal or vertical positioning and can be adjusted to either wall to complete multiple joints
- Retractable edge stops automatically align boards to position dowel pins in the same location.
- Included spacer blocks align the drill guides with the centre of your board
- Built-in centre finder and pencil included
- Non-Slip Pad prevents slipping and marring of the workpiece
- A bucket of dowels in three sizes
