Product Information
INCRA METRIC Original Jig with 1-hour Instructional DVD
The INCRA Jig that started it all more than twenty years ago has been reissued, and the same qualities that made it such a knockout then are still relevant in workshops today.
The only two moving parts are the locking knob and the single-piece upper carriage. It’s as simple and reliable as your favorite hammer, yet it indexes on 1/32” increments with the same 1/1000” positioning accuracy and repeatability of our top-of-the-line LS Positioners.
The rigid, glass-reinforced resin body consists of upper and lower halves and provides 8” or 200mm of solid fence travel. Our patented incremental racks are installed where the halves of the jig meet, with each rack offering hundreds of teeth on a precise 1/32” spacing. When the clamping knob is tightened, the teeth mesh, causing the fence and carriage to instantly “center up” on perfect multiples of 1/32” five to ten times more precisely than working by eye alone.

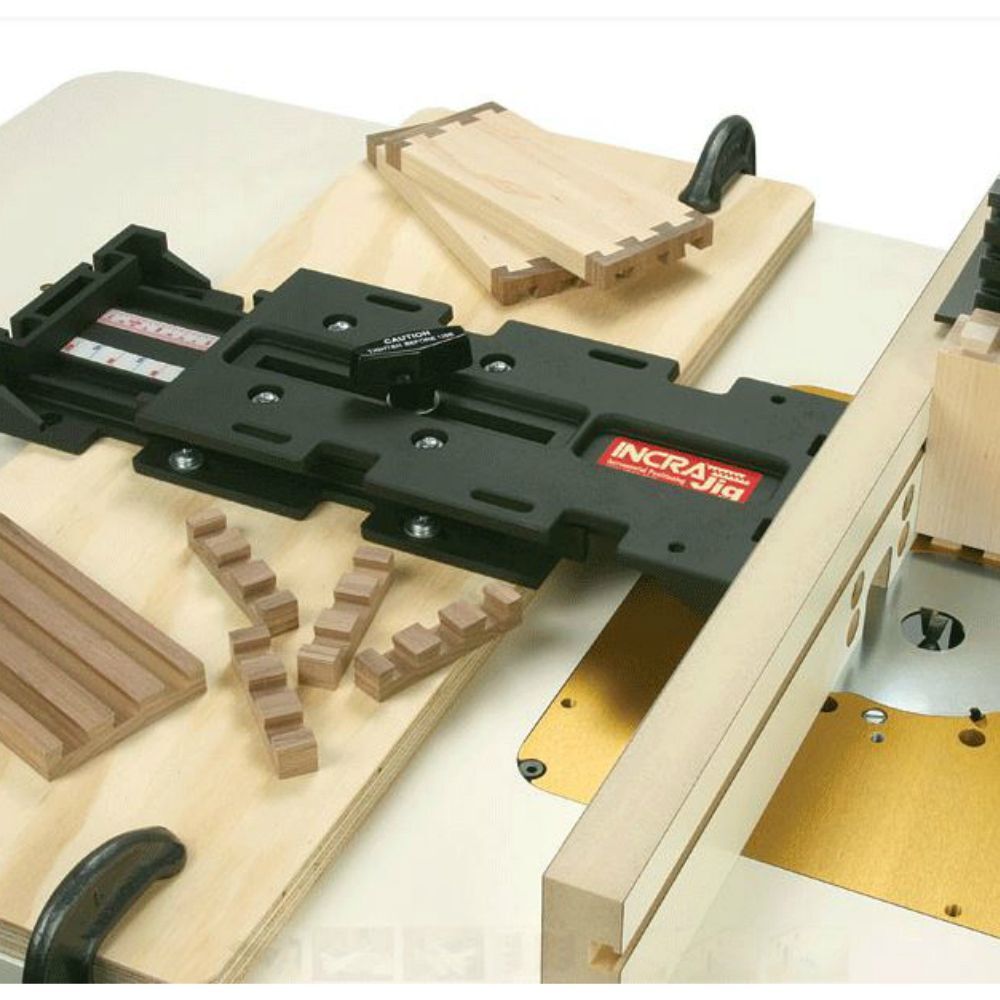

By adding a fence and a couple of simple fixtures (either shop-made or purchased as part of the INCRA Jig Fence System), 3/8” box joint and 1/2” dovetails can be produced equally spaced or variably spaced. The 1/2” dovetail template can also be made half-blind, through, sliding, or cornerpost. For even more variety, the 11 box joint templates and 29 dovetail templates from the INCRA Master Reference Guide can be adapted to the Original INCRA Jig to produce literally billions of joinery variations.
And keep in mind that INCRA Jigs aren’t just for box joints and dovetails. The incremental nature of the Jig causes fence setups for any repetitive cutting operations such as grooving and fluting to suddenly become lightning fast and dead-on accurate. Adding a fence with a larger router bit opening makes it simple to remove material in controlled steps when doing everyday edge forming operations.

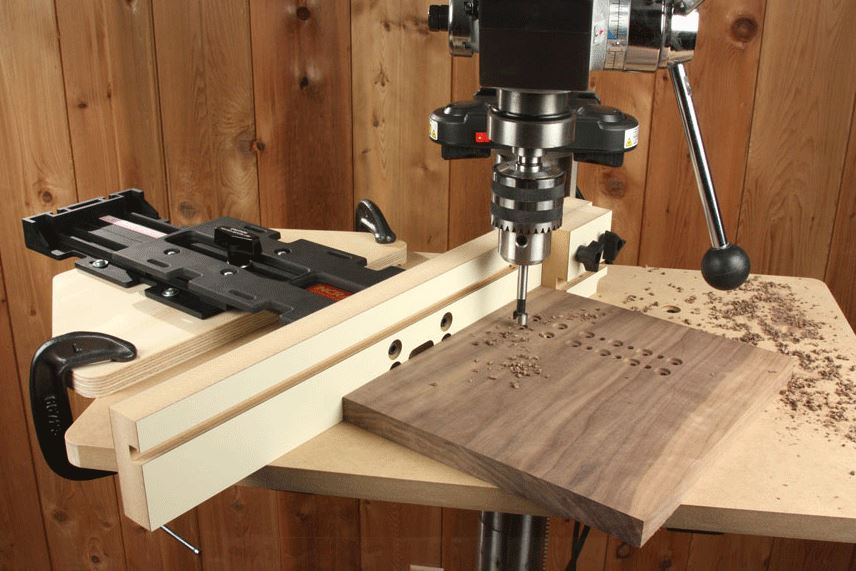

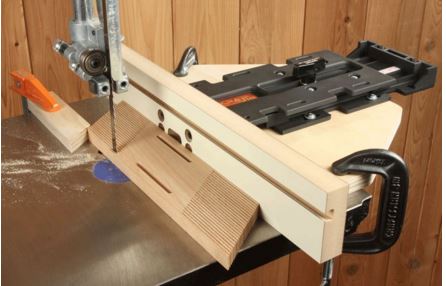

Though it was made famous by router work, the Original INCRA Jig’s compact size makes it perfect for use at a variety of different machines, really anywhere you have a need for a sturdy, accurate, and repeatable fence positioner. Positioning the fence on a drill press table or re-sawing lumber at the band saw are only two of the possibilities.
The FREE one-hour instructional DVD covers basic setups, user-made fixtures and accessories, and several typical router table applications. The DVD also moves on to directly illustrate the processes of making basic box joints and dovetails, and it even covers some of the many joinery variations that can be done with the two included templates.
