Product Information
INCRA 28" x 21" Router Table Tops with TSRTHW - TSRT2832R for Left Side

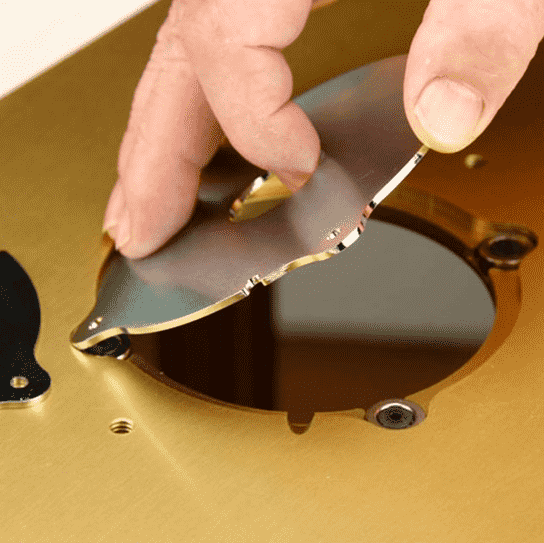

All INCRA Router Tables are shipped with a 3/8" solid aluminum router mounting plate, pre-drilled for your router, featuring the exclusive MagnaLOCK Magnetic Reducing Ring System. Changing any of the included throat plates is a snap with the MagnaLOCK System. Just drop in the selected ring and the high energy, rare-earth magnets hold it securely and perfectly flush every time. The rings have their own leveling system within the plate. All of our router mounting plates include 3 laser cut rings with 1", 2-1/8" and 3-5/8" openings.
Rather than the typical router plate leveling set screws that dig into the table's recess requiring constant re-adjustment, INCRA's plate leveling system puts 10 large flat head levelers into the table itself for excellent support. Convenient access to these levelers is through the 10 access holes located around the perimeter of the mounting plate, and after leveling, a simple quarter turn of the corner mounted Cam-Lock securely holds the plate in the router table's recess.
Available in 4 models designed specifically for the INCRA TS-LS and TS-III table saw fence systems. All table saw based router tables include the TS Router Table Support Kit with 4 brackets and 2 table stiffeners. The brackets can be positioned anywhere along the INCRA TS System's rail length and are vertically adjustable.
The 28" x 32" Right-hand table serves double duty as a work surface extension and includes a full size 3/8" x 3/4" T-Slot Miter Channel. This table is for use with saws measuring 27"-28" deep along the miter slot. This table allows 5" - 7" of routing capacity without moving the TS system's base assembly on the rails, and the fence system can be reversed if more capacity is needed.
Requires the use of an INCRA TS-LS or TS-III table saw fence system. Not compatible with cabinet saws that have motor housings on the right side of the saw when used with 72" INCRA rail sets - check the Compatibility Chart for more info. TS Rail Support Legs highly recommended.
Router plate size: 9-1/4" x 11-3/4" x 3/8"
Actual table size: 28.580" x 31.580" +/-0.020"
Table thickness: 1.350" +/-0.020"
IMPORTANT: WE ARE OUT OF STOCK OF THE MAGNALOCK PLATE. THIS IS FOR THE TABLE and TSRTHW ONLY.
