Product Information

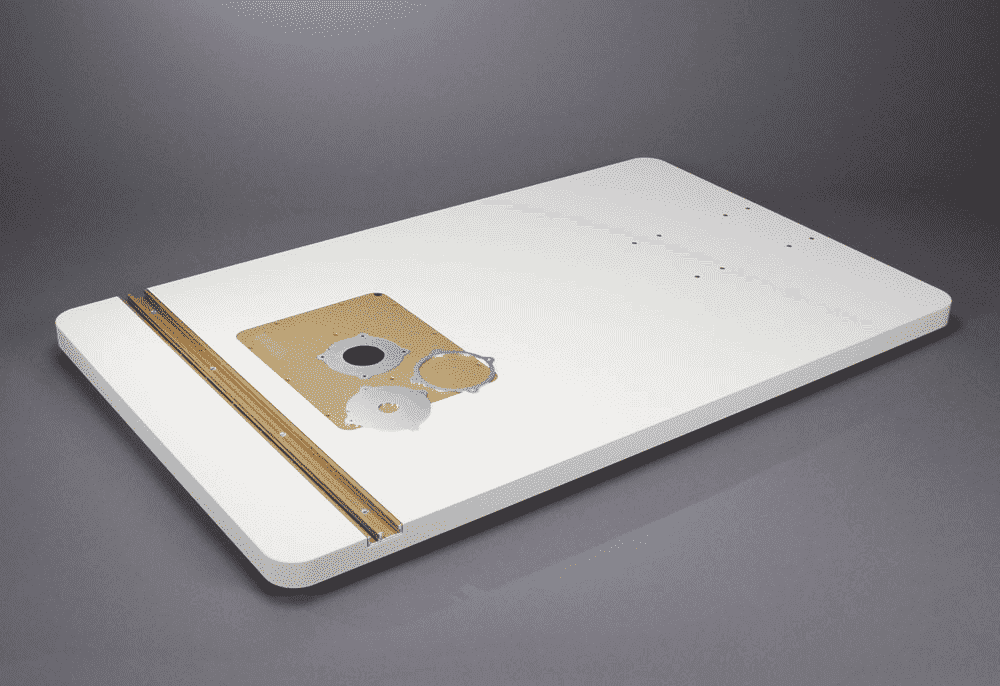

INCRA 27” x 43" Offset Router Table Top - RT2743OS
All of INCRA's new lineup of heavy duty router table tops feature a 1-1/4" MDF substrate with a high pressure horizontal grade phenolic laminate top and bottom. All INCRA Router Tables are shipped with a 3/8" solid aluminum router mounting plate, pre-drilled for your router, featuring the exclusive MagnaLOCK™ Magnetic Throat Plate System. Available in 3 sizes for a free standing application.
Rather than the typical router plate leveling set screws that dig into the table's recess requiring constant re-adjustment, INCRA's plate leveling system puts flat head levelers in the table, not in the router mounting plate. Access to these levelers is through the 10 access holes located around the perimeter of the mounting plate. Just insert the hex key in the access holes and turn to adjust. After leveling, a simple quarter turn of the corner mounted Cam-Lock securely holds the plate in the router table's recess.
All INCRA Router Tables are shipped with a 3/8" solid aluminum router mounting plate, pre-drilled for your router, featuring the exclusive Magna-Lock magnetic throat plate system. Changing any of the included throat plates is a snap with the MagnaLOCK System.
Just drop in the selected plate. The high energy, rare-earth magnets hold the plate secure and perfectly flush every time. All of our mounting plates include 3 laser cut throat plates with a 1", 2-1/8" and 3-5/8" opening.
This 27" x 43" Offset Router Table is our widest top and is similar in depth to most table saws for more work surface front-to-rear. This table allows full capacity on the LS 17 Systems. With the LS25 Systems, this table allows 19" capacity between the router centerline and the fence with the positioner's base mounted inside the table's edge, and allows full capacity with the base overhanging the right-hand edge. Pre-drilled for the LS positioners; includes an aluminum MagnaLock router mounting plate and a preinstalled aluminum miter channel. Use our Router Table Stands to get a head start building a cabinet.
This table is not compatible with the unique Mast-R-Lift-II-R sold by Rockler, which uses a narrower 8-1/4"-wide top plate.
Features include:
In the table plate leveling system.
3/8" x 3/4" T-Slot Miter Channel.
Cam-Lock 1/4 turn plate locking.
Solid Aluminum Mounting Plate w/MagnaLOCK™ Throat Plate System.
Router plate size: 9-1/4" x 11-3/4" x 3/8"
Actual Table Size: 26.830" x 43.455" +/-0.020"
Table thickness: 1.350" +/-0.020"
INCRA Aluminum MagnaLOCK Plate Selection Chart
