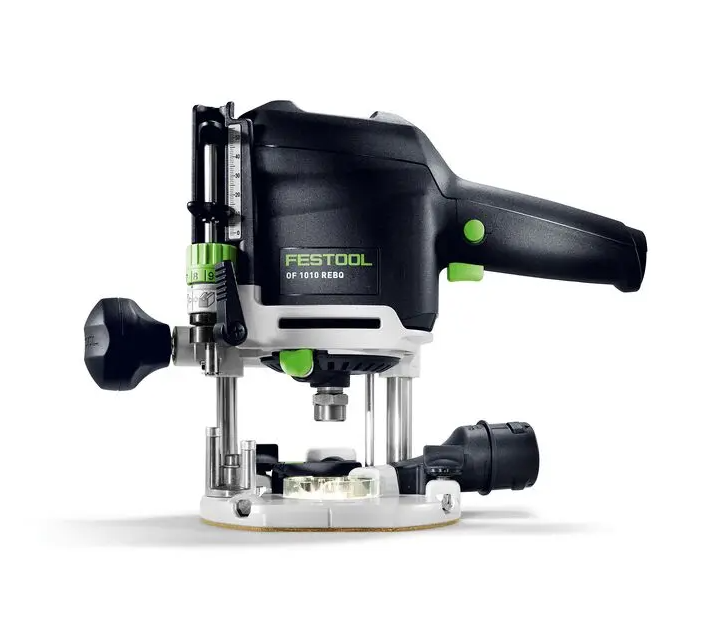

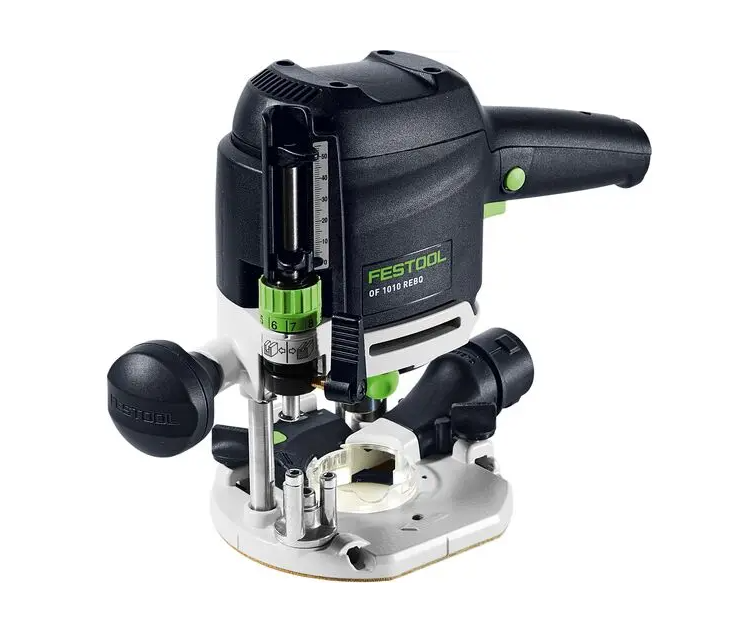

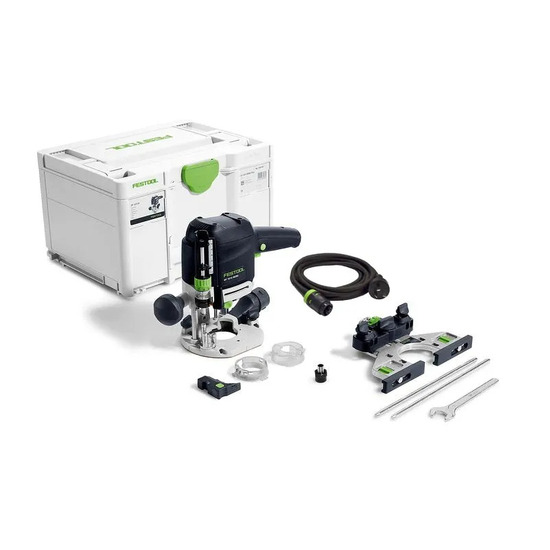

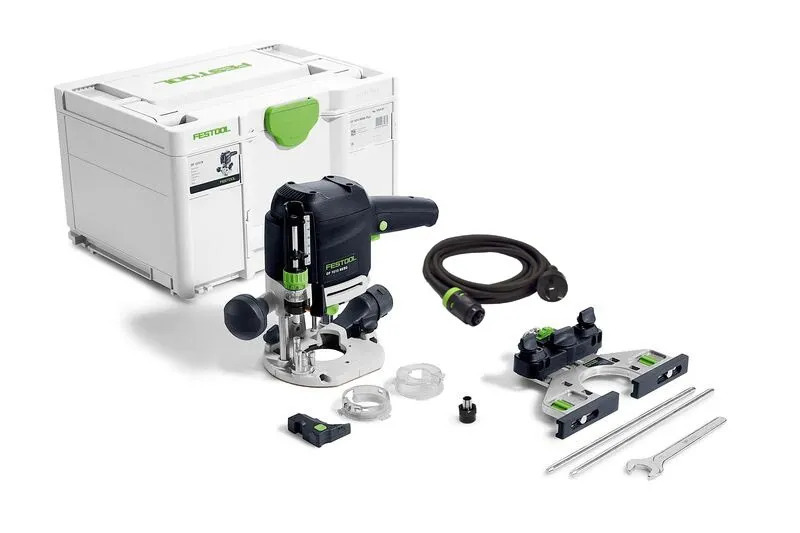

Festool OF 1010R 55mm Plunge Router with Light in Systainer (578016)

Festool OF 1010R 55mm Plunge Router with Light in Systainer

Lights on for maximum precision.

The OF 1010 R router enables you to work with maximum precision. The double-sided column clamp makes it extremely torsionally rigid and the parallel side fence can be precisely adjusted without any tools. The easily accessible working area with LED light ring provides an optimal view of the workpiece. The ring provides shadow free lighting directly on the workpiece; everything you need for extremely precise routing results. Moreover, thanks to the extensive range of accessories, the application possibilities of the OF 1010 R are virtually unlimited.

• Handy: Thanks to the compact design and low weight.
• Unobstructed view: Clearly visible routing area.
• Well lit: Thanks to the rechargeable LED work light in the base panel.
• In an instant: Quick and easy cutter changes.
• Precise: Simple routing depth adjustment, accurate to 1/10 mm.
• Steady: Torsionally rigid router table due to guide columns on both sides.

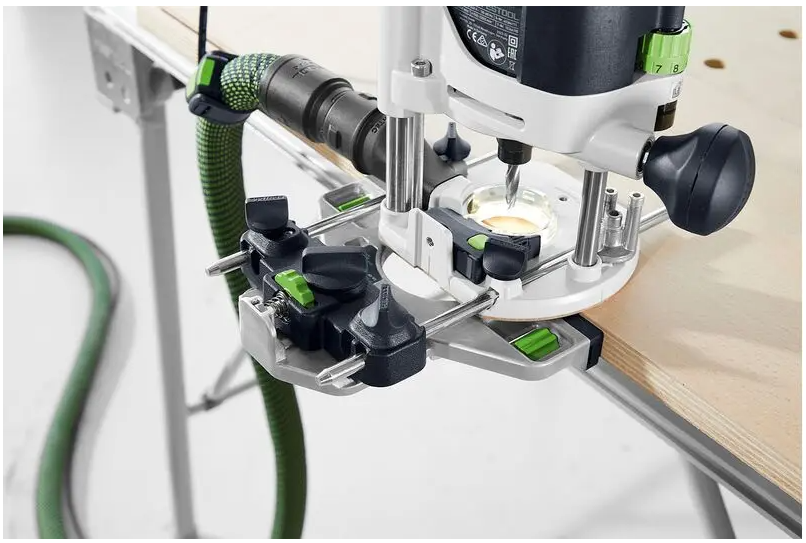

• Parallel side fence: Quick and precise to adjust thanks to the central clamp with fine adjuster and tool free adjustable guidance jaws.
• Safer: Thanks to quick-acting brake and restart protection.
• Material specific: MMC electronics for optimal work and temperature monitoring.

• Integrated: Chip extraction system directly integrated into the router table for D 27 and D 36 hose diameters.

Main applications

• Rounding, chamfering, rebating and profiling edges
• Recessing metal fittings
• Grooving rear panels, recessing dovetail batons or routing plasterboard with the guide system (edging technology)
• Producing rows of holes in cabinets using the hole series system LR 32
• Fashioning wooden joints with the VS 600

Technical Specs

• Tool Weight (kg): 3.20 kg
• No Load Speed (rpm): 9 500 - 23 000 min⁻¹
• Dust Extraction Connection Diameter (mm): 27/36 mm
• Collet Diameter (mm): 6 - 8 mm
• Routing Depth Adjustment Range (mm): 8.00 mm
• Power Source: Corded
• Power Consumption (W or kW): 1 010 W
• Routing stroke: 55.00 mm
• Bench opening: 50.00 mm
